AsyncAPI and Spring Cloud Stream 3

👉 ZenWave360 Helps You Create Software Easy to Understand

Maven Central GitHub

Note: Starting with version 2.0.0, the Maven groupId has changed to io.zenwave360. The code remains fully compatible.

AsyncAPI and Spring Cloud Streams 3

Generating Consumer & Producer APIs

With ZenWave’s spring-cloud-streams3 and jsonschema2pojo generator plugins you can generate:

  • Strongly typed business interfaces
  • Payload DTOs and
  • Header objects from AsyncAPI definitions.

It uses Spring Cloud Streams as default implementation, so it can connect to many different brokers via provided binders.

And because everything is hidden behind interfaces we can encapsulate many Enterprise Integration Patterns:

  • Transactional Outbox: with Spring Modulith, MongoDB ChangeStreams, Plain SQL or a custom solution
  • Business DeadLetter Queues: allowing you to route different business Exceptions to different DeadLetter queues for non-retrayable errors.
  • Enterprise Envelope: when your organization uses a common Envelope for messages, you can still express your AsyncAPI definition in terms of your business payload.

It supports AsyncAPI v2 (publish/subscribe) and AsyncAPI v3 (send/receive) styles.

It also lets you reverse how the API is generated using the client role, so you don’t need to define a new API definition just to consume an existing API.

Maven Plugin Configuration (API-First)

Configure ZenWave Maven Plugin to generate code during your build process:

  1. Add generator dependencies to zenwave-sdk-maven-plugin
  2. Configure <execution> blocks for each generator (jsonschema2pojo, spring-cloud-streams3, etc)
  3. Reference AsyncAPI files from dependencies using classpath: prefix
  4. Set generator options using <configOptions> (see SpringCloudStreams3Plugin Options )

Maven Plugin Base Configuration

Use this as base configuration:

<plugin>
    <groupId>io.zenwave360.sdk</groupId>
    <artifactId>zenwave-sdk-maven-plugin</artifactId>
    <version>${zenwave.version}</version>
    <configuration>
        <addCompileSourceRoot>true</addCompileSourceRoot><!-- default is true -->
        <addTestCompileSourceRoot>true</addTestCompileSourceRoot><!-- default is true -->
    </configuration>
    <executions>
        <!-- Add executions for each generation here: -->
        <execution>
            <id>generate-asyncapi-xxx</id>
            <phase>generate-sources</phase>
            <goals>
                <goal>generate</goal>
            </goals>
            <configuration>
                <generatorName>spring-cloud-streams3</generatorName>
                <inputSpec>classpath:model/asyncapi.yml</inputSpec>
                <configOptions>
                    <!-- ... -->
                </configOptions>
            </configuration>
        </execution>
    </executions>

    <!-- add any sdk plugin (custom or standard) as dependency here -->
    <dependencies>
        <dependency><!-- optional dependency containing AsyncAPI definition files -->
            <groupId>com.example.apis</groupId>
            <artifactId>asyncapis</artifactId>
            <version>${apis.version}</version>
        </dependency>
        <dependency>
            <groupId>io.zenwave360.sdk.plugins</groupId>
            <artifactId>asyncapi-spring-cloud-streams3</artifactId>
            <version>${zenwave.version}</version>
        </dependency>
        <dependency>
            <groupId>io.zenwave360.sdk.plugins</groupId>
            <artifactId>asyncapi-jsonschema2pojo</artifactId>
            <version>${zenwave.version}</version>
        </dependency>
    </dependencies>
</plugin>

Generate Model DTOs using jsonschema2pojo

Add this execution to generate model DTOs from AsyncAPI definitions:

<execution>
    <id>generate-asyncapi-producer-dtos</id>
    <phase>generate-sources</phase>
    <goals>
        <goal>generate</goal>
    </goals>
    <configuration>
        <generatorName>jsonschema2pojo</generatorName>
        <inputSpec>${pom.basedir}/src/main/resources/model/asyncapi.yml</inputSpec>
        <configOptions>
            <modelPackage>io.zenwave360.example.api.events.model</modelPackage>
        </configOptions>
    </configuration>
</execution>

Generate Spring Cloud Streams Provider Implementation with spring-cloud-streams3

Add this execution to generate Spring Cloud Streams producer/consumer classes from AsyncAPI definitions:

<execution>
    <id>generate-asyncapi-producer</id>
    <phase>generate-sources</phase>
    <goals>
        <goal>generate</goal>
    </goals>
    <configuration>
        <generatorName>spring-cloud-streams3</generatorName>
        <inputSpec>classpath:model/asyncapi.yml</inputSpec>
        <configOptions>
            <role>provider</role><!-- use `client` to reverse code generation -->
            <transactionalOutbox>none</transactionalOutbox> <!-- `modulith` (preferred), `mongodb`, `jdbc` or `none` -->
            <modelPackage>io.zenwave360.example.api.events.model</modelPackage>
            <apiPackage>io.zenwave360.example.api.events</apiPackage>
            <!-- use <producerApiPackage></producerApiPackage> if you want to differentiate producer/consumer packages, it overrides apiPackage -->
            <!-- use <consumerApiPackage></consumerApiPackage> if you want to differentiate producer/consumer packages, it overrides apiPackage -->
        </configOptions>
    </configuration>
</execution>

Reverse Code Generation using Client role.

If you want to generate the consumer side of an existing API, you can use the client role to reverse how the API is generated:

<execution>
    <id>generate-asyncapi-client-imperative</id>
    <phase>generate-sources</phase>
    <goals>
        <goal>generate</goal>
    </goals>
    <configuration>
        <generatorName>spring-cloud-streams3</generatorName>
        <inputSpec>${pom.basedir}/src/main/resources/model/asyncapi.yml</inputSpec>
        <configOptions>
            <role>client</role>
            <modelPackage>io.zenwave360.example.api.events.model</modelPackage>
            <apiPackage>io.zenwave360.example.api.events</apiPackage>
        </configOptions>
    </configuration>
</execution>

Because APIs mediated by a broker are inherently reciprocal it’s difficult to establish the roles of client/server: what represents a publish operation from one side will be a subscribe operation seen from the other side. Also, a given service can act as a publisher and subscriber on the same API.

For these reasons, to avoid defining the same API operations multiple times from each perspective, we propose to define de API only once from the perspective of the provider of the functionality, which may be a producer, a consumer or both.

Some definitions:

  • SERVICE: An independent piece of software, typically a microservice, that provides a set of capabilities to other services.
  • PROVIDER: The service that implements the functionality of the API. It may be accepting asynchronous command request or publishing business domain events.
  • CLIENT/s: The service/s that makes use of the functionality of the API. It may be requesting asynchronous commands or subscribing to business domain events.
  • PRODUCER: A service that writes a given message.
  • CONSUMER: A service that reads a given message.

Use the table to understand which section of AsyncAPI (publish or subscribe) to use for each topic, and which role (provider or client) to use on the plugin configuration.

  Events Commands
Provider Produces (publish) Consumes (subscribe)
Client Consumes (subscribe) Produces (publish)
OperationId Suggested Prefix on<Event Name> do<Command Name>

Getting Help

jbang zw -p io.zenwave360.sdk.plugins.SpringCloudStreams3Plugin --help

SpringCloudStreams3Plugin Options

Option Description Type Default Values
apiFile API Specification File URI
apiFiles API Spec files to parse (comma separated) List
role Project role: provider/client AsyncapiRoleType provider provider, client
style Programming style ProgrammingStyle imperative imperative, reactive
modelPackage Java Models package name String
producerApiPackage Java API package name for outbound (producer) services. It can override apiPackage for producers. String
consumerApiPackage Java API package name for inbound (consumer) services. It can override apiPackage for consumer. String
apiPackage Java API package name for producerApiPackage and consumerApiPackage if not specified. String
transactionalOutbox Transactional outbox type for message producers. TransactionalOutboxType none none, modulith, mongodb, jdbc
bindingPrefix SC Streams Binding Name Prefix (used in @Component name) String
bindingSuffix Spring-Boot binding suffix. It will be appended to the operation name kebab-cased. E.g. -in-0 String -0
generatedAnnotationClass Annotation class to mark generated code (e.g. org.springframework.aot.generate.Generated). When retained at runtime, this prevents code coverage tools like Jacoco from including generated classes in coverage reports. String
targetFolder Target folder to generate code to. If left empty, it will print to stdout. File
modelNamePrefix Sets the prefix for model classes and enums String
modelNameSuffix Sets the suffix for model classes and enums String
runtimeHeadersProperty AsyncAPI extension property name for runtime auto-configuration of headers. String x-runtime-expression
includeApplicationEventListener Include ApplicationEvent listener for consuming messages within the modulith. boolean false
skipProducerImplementation Generate only the producer interface and skip the implementation. boolean false
exposeMessage Whether to expose underlying spring Message to consumers or not. boolean false
useEnterpriseEnvelope Include support for enterprise envelop wrapping/unwrapping. boolean false
envelopeJavaTypeExtensionName AsyncAPI Message extension name for the envelop java type for wrapping/unwrapping. String x-envelope-java-type
methodAndMessageSeparator To avoid method erasure conflicts, when exposeMessage or reactive style this character will be used as separator to append message payload type to method names in consumer interfaces. String $
consumerPrefix SC Streams Binder class prefix String
consumerSuffix SC Streams Binder class suffix String Consumer
consumerServicePrefix Business/Service interface prefix String I
consumerServiceSuffix Business/Service interface suffix String ConsumerService
includeKafkaCommonHeaders Include Kafka common headers ‘kafka_messageKey’ as x-runtime-header boolean false
bindingTypes Binding names to include in code generation. Generates code for ALL bindings if left empty List
operationIds Operation ids to include in code generation. Generates code for ALL if left empty List []
excludeOperationIds Operation ids to exclude in code generation. Skips code generation if is not included or is excluded. List []
formatter Code formatter implementation Formatters palantir palantir, spring, google
skipFormatting Skip java sources output formatting boolean false
haltOnFailFormatting Halt on formatting errors boolean true

Advanced Features

Transactional Outbox Pattern

ZenWave SDK supports sending messages transactionaly using the Transactional Outbox Pattern.

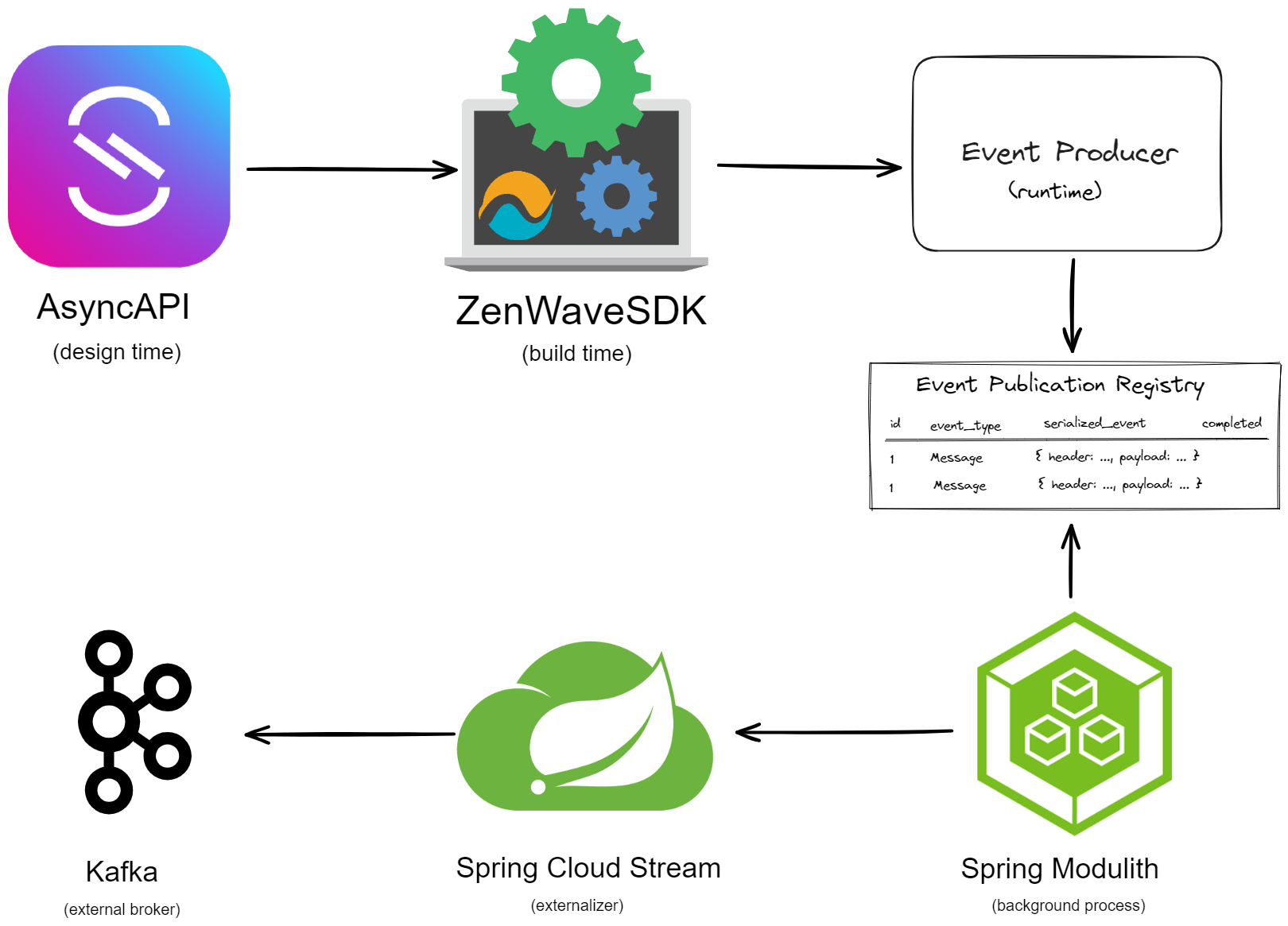

Transactional Outbox with AsyncAPI and Spring Modulith

See Implementing a Transactional OutBox With AsyncAPI, SpringModulith and ZenWaveSDK for complete details.

Populating Headers at Runtime Automatically

ZenWave SDK provides x-runtime-expression for automatic header population at runtime. Values for this extension property are:

  • $message.payload#/<json pointer fragment>: follows the same format as AsyncAPI Correlation ID object.
  • $message.payload#{ <SpEL expression> }: will use the SpEL expression to populate the header value.
  • $supplierBeanName: will use a bean named supplierBeanName (you can use any other name) of type java.function.Supplier configured in your Spring context.
    CustomerEventMessage:
      name: CustomerEventMessage
      // [...] other properties omitted for brevity
      headers:
        type: object
        properties:
          kafka_messageKey:
            type: string
            description: This one will be populated automatically at runtime
            x-runtime-expression: $message.payload#/customer/id
          tracingId:
            type: string
            description: This one will be populated automatically at runtime
            x-runtime-expression: $supplierBeanName
          # CloudEvents Attributes:
          # these examples showcase how you can use SpEL expressions to populate runtime headers
          ce-id:
            type: string
            description: Unique identifier for the event
            x-runtime-expression: $message.payload#{#this.id}
          ce-source:
            type: string
            description: URI identifying the context where event happened
            x-runtime-expression: $message.payload#{"CustomersService"}
          ce-specversion:
            type: string
            description: CloudEvents specification version
            x-runtime-expression: $message.payload#{"1.0"}
          ce-type:
            type: string
            description: Event type
            x-runtime-expression: $message.payload#{#this.getClass().getSimpleName()}
          ce-time:
            type: string
            description: Timestamp of when the event happened
            x-runtime-expression: $message.payload#{T(java.time.Instant).now().toString()}

You can also override the runtimeHeadersProperty extension property name (in the rare case you need to):

<configOption>
    <runtimeHeadersProperty>x-custom-runtime-expression</runtimeHeadersProperty><!-- you can also override this extension property name -->
</configOption>

And provide a bean of type java.function.Supplier in your Spring context:

    @Bean("supplierBeanName")
    public Supplier supplierBeanName() {
        return () -> "some-value";
    }

InMemory Events Producer for Tests (Mocks)

// autogenerate in: target/generated-sources/zenwave/src/test/java/.../InMemoryCustomerOrderEventsProducer.java
public class InMemoryCustomerOrderEventsProducer implements ICustomerOrderEventsProducer {

    protected Map<String, List<Message>> capturedMessages = new HashMap<>();
    public Map<String, List<Message>> getCapturedMessages() {
        return capturedMessages;
    }
    // other details omitted for brevity

    /**
     * CustomerOrder Domain Events
     */
    public boolean onCustomerOrderEvent(CustomerOrderEventPayload payload, CustomerOrderEventPayloadHeaders headers) {
        log.debug("Capturing message to topic: {}", onCustomerOrderEventBindingName);
        Message message = MessageBuilder.createMessage(payload, new MessageHeaders(headers));
        return appendCapturedMessage(onCustomerOrderEventBindingName, message);
    }

}

// autogenerated in: target/generated-sources/zenwave/src/test/java/.../ProducerInMemoryContext.java
public class ProducerInMemoryContext {

    public static final ProducerInMemoryContext INSTANCE = new ProducerInMemoryContext();


    private CustomerEventsProducerCaptor customerEventsProducerCaptor = new CustomerEventsProducerCaptor();

    public <T extends ICustomerEventsProducer> T customerEventsProducer() {
        return (T) customerEventsProducerCaptor;
    }
}

Routing Business Exceptions to Dead Letter Queues with Configuration

When consuming Events you can route different business exceptions to different Dead Letter Queues bindings using the dead-letter-queue-error-map.

This mechanism is useful when you know an exception is not retrayable, and you want to route it to a different DLQ.

When no matching exception is found in dead-letter-queue-error-map, the exception will propagate up the call stack, allowing standard retry and error handling mechanisms to take effect.

# application.yml
spring:
  cloud:
    stream:
      bindings:
        do-create-customer-in-0:
          destination: customer.requests
          content-type: application/json
          dead-letter-queue-error-map: >
            {
              'jakarta.validation.ValidationException': 'do-create-customer-validation-error-out-0',
              'java.lang.Exception': 'do-create-customer-error-out-0'
            }

Generating Consumer Adapters (Skeletons)

jbang zw -p io.zenwave360.sdk.plugins.SpringCloudStreams3AdaptersPlugin --help

jbang zw -p io.zenwave360.sdk.plugins.SpringCloudStreams3AdaptersPlugin \
    specFile=src/main/resources/model/asyncapi.yml \
    zdlFile=src/main/resources/model/orders-model.jdl \
    role=provider \
    style=imperative \
    basePackage=io.zenwave360.example \
    consumerApiPackage=io.zenwave360.example.adapters.events \
    modelPackage=io.zenwave360.example.core.domain.events \
    targetFolder=.

@Component
public class DoCustomerRequestConsumerServiceAdapter implements IDoCustomerRequestConsumerService {

  private EventEntityMapper mapper;
  // TODO: private EntityUseCases service;

  @Autowired
  public void setEventEntityMapper(EventEntityMapper mapper) {
    this.mapper = mapper;
  }

  /** Customer Async Requests */
  public void doCustomerRequest(CustomerRequestPayload payload, CustomerRequestPayloadHeaders headers) {
    // TODO: service.doCustomerRequest(mapper.asEntity(payload));
  };
}

Consumer Adapters API Tests

// generated and editable in: src/test/java/.../adapters/events/DoCustomerRequestConsumerServiceIT.java
@SpringBootTest(webEnvironment = SpringBootTest.WebEnvironment.MOCK)
@org.springframework.transaction.annotation.Transactional
public class DoCustomerRequestConsumerServiceIT extends BaseConsumerTest {

  @Autowired public IDoCustomerRequestConsumerService consumerService;

  /** Test for doCustomerRequest: */
  @Test
  public void doCustomerRequestTest() {
    CustomerRequestPayload payload = new CustomerRequestPayload();
    payload.setCustomerId(null);
    payload.setRequestType(null);
    payload.setCustomer(null);

    CustomerRequestPayloadHeaders headers = new CustomerRequestPayloadHeaders();

    // invoke the method under test
    consumerService.doCustomerRequest(payload, headers);
    // perform your assertions here
  }
}

Options for Consumer Adapters

Option Description Type Default Values
specFile API Specification File URI
specFiles ZDL files to parse String[] []
targetFolder Target folder to generate code to. If left empty, it will print to stdout. File
style Programming style ProgrammingStyle imperative imperative, reactive
role Project role: provider/client AsyncapiRoleType provider provider, client
exposeMessage Whether to expose underlying spring Message to consumers or not. boolean false
apiId Unique identifier of each AsyncAPI that you consume as a client or provider. It will become the last package token for generated adapters String commands
basePackage Applications base package String
adaptersPackage The package to generate Async Inbound Adapters in String .adapters.events.
inboundDtosPackage Package where your inbound dtos are String .core.inbound.dtos
servicesPackage Package where your domain services/usecases interfaces are String .core.inbound
apiPackage Java API package name for producerApiPackage and consumerApiPackage if not specified. String
modelPackage Java Models package name String
producerApiPackage Java API package name for outbound (producer) services. It can override apiPackage for producers. String
consumerApiPackage Java API package name for inbound (consumer) services. It can override apiPackage for consumer. String
bindingTypes Binding names to include in code generation. Generates code for ALL bindings if left empty List
operationIds Operation ids to include in code generation. Generates code for ALL if left empty List []
runtimeHeadersProperty AsyncAPI extension property name for runtime auto-configuration of headers. String x-runtime-expression
continueOnZdlError Continue even when ZDL contains fatal errors boolean true
inputDTOSuffix Should use same value configured in BackendApplicationDefaultPlugin. Whether to use an input DTO for entities used as command parameter. String
baseTestClassName BaseConsumerTest class name String BaseConsumerTest
baseTestClassPackage BaseConsumerTest package String .adapters.events
transactional Annotate tests as @Transactional boolean true
transactionalAnnotationClass @Transactional annotation class name String org.springframework.transaction.annotation.Transactional
methodAndMessageSeparator To avoid method erasure conflicts, when exposeMessage or reactive style this character will be used as separator to append message payload type to method names in consumer interfaces. String $
consumerPrefix SC Streams Binder class prefix String
consumerSuffix SC Streams Binder class suffix String Consumer
bindingPrefix SC Streams Binding Name Prefix (used in @Component name) String
servicePrefix Business/Service interface prefix String I
serviceSuffix Business/Service interface suffix String ConsumerService
bindingSuffix Spring-Boot binding suffix. It will be appended to the operation name kebab-cased. E.g. -in-0 String -0
formatter Code formatter implementation Formatters spring google, palantir, spring, eclipse
skipFormatting Skip java sources output formatting boolean false
haltOnFailFormatting Halt on formatting errors boolean true

ZenWave360 © 2022-2024 - Domain Driven Design (DDD) and API-First for Event Driven Microservices.
