Meet ZenWave SDK Project Architecture Layouts

The architecture should follow the complexity of the domain, rather than personal preference or the popularity of a pattern. In a core domain, where the team is still discovering the business and the model has to absorb that knowledge as it grows, boundaries earn their cost. CleanHexagonalProjectLayout, HexagonalProjectLayout, or CleanArchitectureProjectLayout give the domain and the application a visible center, where the model can be carefully designed and protected from details that belong to web, persistence, or messaging technologies.

For a supporting or generic subdomain, or for a data centric module or microservice whose main responsibility is to store, validate, transform, and expose information, that same amount of separation may add more ceremony than value. LayeredProjectLayout gives these projects the classical web, service, and repository tiers, which are familiar, direct, and usually more than enough. Choosing it is not settling for a lesser architecture, because when business rules are thin, simplicity and ease of maintenance are part of good design.

When the module is smaller still, or is part of a bigger monolith, perhaps with one aggregate and only a few operations, SimpleDomainProjectLayout can be even more desirable. Most classes live under the same root package, with only the domain model, DTOs, events, and mappers keeping their own small spaces, so the complete service can be understood without walking through boundaries that protect no real complexity.

These layouts are not a scale of maturity, and the most elaborate one is not automatically the best. The useful question is how much structure the business problem needs, and the answer may change as the domain becomes better understood. In ZenWave SDK that decision is one word in the config block, so you can generate the same model with different layouts, compare how each one feels for the project in front of you, and choose the smallest architecture that protects the complexity that is actually there.

ZenWave SDK can generate Spring-Boot projects from the same ZDL model.

Selecting a Project Layout

The layout can be selected in the ZDL configuration with one property:

config {
    basePackage "io.zenwave360.example"
    persistence jpa
    databaseType postgresql
    layout CleanHexagonalProjectLayout

    // you can choose: DefaultProjectLayout, LayeredProjectLayout, SimpleDomainProjectLayout
    //                 CleanHexagonalProjectLayout, HexagonalProjectLayout, CleanArchitectureProjectLayout
}

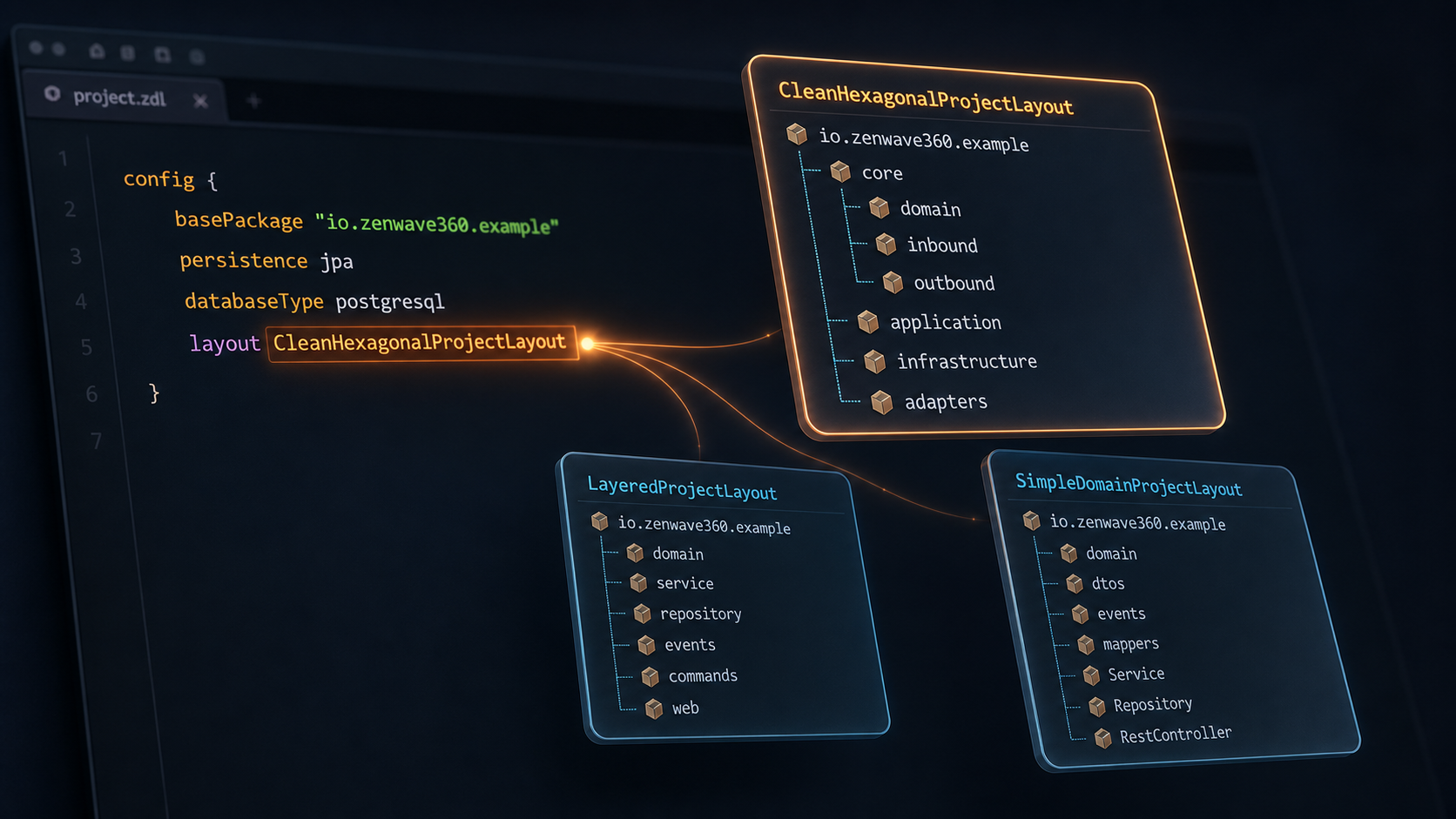

That single line reorganizes how your Spring Boot project is generated.

The six layouts

CleanHexagonalProjectLayout, the default

The CleanHexagonalProjectLayout places the business application inside a core package. The domain model, service interfaces, outbound dependencies, and service implementations remain together at the center, while web and event adapters stay outside, beside the infrastructure code.

📦 io.zenwave360.example
   📦 core
      📦 domain              # entities, aggregates, value objects
         📦 events           # domain events
      📦 inbound             # service interfaces
         📦 dtos
      📦 outbound            # repository and event publisher interfaces
         📦 jpa
         📦 events
      📦 application         # service implementations
         📦 mappers
   📦 infrastructure         # custom repository implementations, event publisher
      📦 jpa
      📦 events
   📦 adapters
      📦 web                 # REST controllers
      📦 events              # event listeners
      📦 commands            # AsyncAPI command handlers

This is the structure ZenWave SDK generates by default. It gives a service clear boundaries without spreading its code across too many top level packages, which makes it a comfortable choice for a core domain or a service of moderate complexity.

DefaultProjectLayout

DefaultProjectLayout is currently another name for CleanHexagonalProjectLayout, and both generate the same structure. You can omit the layout option or select either name explicitly.

LayeredProjectLayout

LayeredProjectLayout follows the classical three tier architecture, where the web layer calls the service layer, the service layer calls the repository layer, and all three work with the same domain model.

📦 io.zenwave360.example
   📦 domain
      📦 events
   📦 service                # service interfaces
      📦 dtos
      📦 impl                # service implementations
         📦 mappers
   📦 repository
      📦 jpa
   📦 events                 # listeners and publisher
   📦 commands
   📦 web
      📦 mappers

The repository interface and its implementation share the same package because the repository is the persistence tier, not a separate outbound port. This direct structure is often the best choice for a supporting or generic subdomain, or for a data centric service where simplicity matters more than strong architectural isolation.

SimpleDomainProjectLayout

SimpleDomainProjectLayout is the smallest layout. The domain model, DTOs, events, and mappers keep their own packages, while services, repositories, controllers, and listeners live directly under the base package.

📦 io.zenwave360.example
   📦 config
   📦 domain
      📦 events
   📦 dtos
   📦 events
   📦 mappers
   ├─ *Service and *ServiceImpl
   ├─ *Repository
   ├─ *RestControllers
   └─ *EventListeners

There are no port boundaries to navigate, which is useful when a module has one small aggregate and only a few operations. In this case the flat structure is not a missing architecture, but a simpler architecture that matches the size of the problem. This is my new favorite for modular monoliths.

HexagonalProjectLayout

HexagonalProjectLayout follows Hexagonal Architecture, also known as Ports and Adapters. The domain and application packages form the interior of the hexagon. Application ports and their implementations remain grouped under application, while driving and driven adapters live as siblings under adapter.in and adapter.out.

📦 io.zenwave360.example
   📦 domain
      📦 event
   📦 application
      📦 port
         📦 in               # driving ports
            📦 dto
         📦 out              # driven ports
            📦 jpa
            📦 event
               📦 dto
      📦 service             # driving port implementations
         📦 mapper
   📦 adapter
      📦 in
         📦 web
         📦 event
         📦 command
      📦 out
         📦 jpa
         📦 event
   📦 config

Choose this layout when the team wants ports, adapters, and their direction to be explicit in the package names. A developer can read the architecture directly from the tree without translating the package vocabulary first.

CleanArchitectureProjectLayout

CleanArchitectureProjectLayout organizes packages using the ring vocabulary described by Robert C. Martin in Clean Architecture (2017). Most generated classes keep their familiar names, such as services, repositories, controllers, and listeners, but the packages place them in their architectural ring. Domain types live in domain, service interfaces and repository interfaces are placed under usecase.boundary.input and usecase.boundary.output, service implementations live under usecase.interactor, and controllers, listeners, handlers, and repository implementations live under adapter.

📦 io.zenwave360.example
   📦 domain                 # Entities ring
      📦 event
   📦 usecase                # Use Cases ring
      📦 boundary
         📦 input
            📦 dto
         📦 output
            📦 jpa
            📦 event
               📦 dto
      📦 interactor
         📦 mapper
   📦 adapter                # Interface Adapters ring
      📦 controller
         📦 dto
         📦 mapper
      📦 listener
      📦 handler
      📦 gateway
         📦 jpa
         📦 event
   📦 config

Choose it when the team already thinks in use cases, boundaries, interactors, and gateways, and wants those concepts to appear directly in the source tree.

The same model, five different projects

It is easier to see the layouts by following one class through all of them. Given basePackage of io.example and JPA persistence, here is where the generated pieces of a customers service land:

generated artifact	CleanHexagonal	Layered	SimpleDomain	Hexagonal	CleanArchitecture
entity	core.domain	domain	domain	domain	domain
domain event	core.domain.events	domain.events	domain.events	domain.event	domain.event
service interface	core.inbound	service	base package	application.port.in	usecase.boundary.input
service implementation	core.application	service.impl	base package	application.service	usecase.interactor
repository interface	core.outbound.jpa	repository.jpa	base package	application.port.out.jpa	usecase.boundary.output.jpa
repository implementation	infrastructure.jpa	repository.jpa	base package	adapter.out.jpa	adapter.gateway.jpa
event publisher port	core.outbound.events	events	events	application.port.out.event	usecase.boundary.output.event
event publisher implementation	infrastructure.events	events	base package	adapter.out.event	adapter.gateway.event
REST controller	adapters.web	web	base package	adapter.in.web	adapter.controller
event listener	adapters.events	events	base package	adapter.in.event	adapter.listener

Read the columns and you can watch a boundary appear and disappear. In the layered column the repository interface and its implementation collapse into one package, because there the repository is the persistence tier rather than a port, and in the simple column nearly everything collapses into the base package. Move to the right and the boundary comes back, until in the last two columns the port and the adapter that implements it sit in packages named after the roles they play. None of those is wrong. They are different answers to how much separation a given subdomain deserves, and the value of naming them is that the answer becomes a decision rather than an accident.

The domain model is also the persistence model

One disclaimer is necessary before calling these layouts clean or hexagonal. A purist will say that a domain model should not carry JPA or MongoDB annotations, and from a strict architectural point of view that objection is fair. ZenWave SDK makes this concession deliberately, with full awareness of the tradeoff.

• Simplicity: We do not need a second set of persistence entities or DTOs, nor a mapper layer that keeps the domain and persistence models synchronized.

• Stable Java API: From the application code point of view, the JPA and MongoDB variants expose the same fields, collections, getters, setters, and repository methods. Only the persistence annotations and the parent interface, JpaRepository or MongoRepository, change.

• Testability: ZenWave SDK generates in memory implementations of these repository interfaces for unit tests. The complete application logic can run against them without starting a JPA persistence context, MongoDB, or a real database, which demonstrates that the code using the domain model is not coupled to the persistence annotations. Those annotations remain metadata for the persistence framework.

The result is not a perfectly technology free domain model, but a conscious compromise that removes a large amount of duplication while keeping the application code testable and dependent on repository interfaces.

Modular monoliths

A modular monolith is one service with several business modules. With ZenWave SDK, each module can be described by its own ZDL model, choose its own project layout, and generate its code into its own module package. The same zenwave-scripts.zw file can invoke BackendApplicationDefaultPlugin once for each model, so one service may contain many modules with different layouts.

Some generated Java sources are common to every module, and generating another copy inside each module would only create duplication. Project layouts therefore provide a parallel set of common package settings for domain base classes, application code, mappers, repositories, events, commands, and web adapters. By overriding these values once in the shared configuration, every module places reusable sources under the same common package while keeping its own domain code in its module package.

The Arcadia Editions modular monolith is a complete example. The relevant part of its configuration looks like this:

@import("com.arcadiaeditions.modulith.application.arcadia-editions-modulith:service-all:0.0.1")
config {

    basePackage "com.arcadiaeditions"
    layout.commonPackage "{{basePackage}}.common"
    layout.entitiesCommonPackage "{{commonPackage}}.domain"
    layout.domainEventsCommonPackage "{{commonPackage}}.domain.events"
    layout.coreImplementationCommonPackage "{{commonPackage}}"
    layout.coreImplementationMappersCommonPackage "{{commonPackage}}.mappers"
    layout.infrastructureRepositoryCommonPackage "{{commonPackage}}"
    layout.infrastructureEventsCommonPackage "{{commonPackage}}"
    layout.adaptersWebCommonPackage "{{commonPackage}}"
    layout.adaptersWebMappersCommonPackage "{{commonPackage}}.mappers"
    layout.adaptersCommandsCommonPackage "{{commonPackage}}.commands"
    layout.adaptersCommandsMappersCommonPackage "{{commonPackage}}.commands.mappers"
    layout.adaptersEventsCommonPackage "{{commonPackage}}.events"
    layout.adaptersEventsMappersCommonPackage "{{commonPackage}}.events.mappers"


    useLombok false
    useJSpecify true
    includeEmitEventsImplementation true

    useSpringModulith true // [modulith]
    transactionalOutbox modulith // [modulith]

    plugins {
        /** Generates a Backend Application from the ZDL model. (Headless Core) */
        BackendApplicationDefaultPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/catalog-inventory-domain-model.zdl"
        }
        BackendApplicationDefaultPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/catalog-products-domain-model.zdl"
        }
        BackendApplicationDefaultPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/fulfillment-shipping-domain-model.zdl"
        }
        BackendApplicationDefaultPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/notifications-consumer-domain-model.zdl"
        }
        BackendApplicationDefaultPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/orders-checkout-domain-model.zdl"
        }
        BackendApplicationDefaultPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/payments-processing-domain-model.zdl"
        }

        /** Generates Spring MVC controllers from the OpenAPI specification (Web Adapters). */
        OpenAPIControllersPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/orders-checkout-domain-model.zdl"
            openapiFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/orders-checkout-openapi.yml"
            openApiModelNameSuffix DTO
        }
        SpringWebTestClientPlugin {
            zdlFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/orders-checkout-domain-model.zdl"
            openapiFile "classpath:/com/arcadiaeditions/modulith/application/arcadia-editions-modulith/orders-checkout-openapi.yml"
            openApiModelNameSuffix DTO
        }
    }
}

The six plugin entries generate inventory, products, shipping, notifications, checkout, and payments as modules of the same service. Each ZDL model remains responsible for its module structure and layout, while the shared overrides place common Java sources under com.arcadiaeditions.common. This keeps the modules independent where their business code differs and brings them together where sharing avoids repetition.

Writing your own

In most cases you do not need to create a new layout. You can select the closest one and override only the package fields you want to change from the config section:

config {
    layout CleanHexagonalProjectLayout
    layout.entitiesPackage "{{basePackage}}.model"
    layout.inboundPackage "{{basePackage}}.api"
    layout.inboundDtosPackage "{{layout.inboundPackage}}.dto"
}

The modular monolith example above follows the same idea, using the common package fields to move shared Java sources without changing the layout of every module. This form of customization remains close to the ZDL model, where the next person can see it, and is usually the simplest place to begin.

When the complete package structure is different, you can create a Java class that extends ProjectLayout, or extend the existing layout that is closest to your architecture. From there you can define every package once and reuse the new layout across projects.

Validate the architecture with jMolecules

When you enable useJMolecules, ZenWave SDK uses the selected layout to add jMolecules annotations to the generated source code. These annotations make the roles of aggregate roots, repositories, services, ports, and adapters visible in the code.

ZenWave SDK also generates architecture tests that run with your unit tests. They validate the DDD model and, when supported by the selected layout, verify that the generated application still respects its architectural boundaries.

You can find the complete annotation mapping and the generated validation rules in ZenWave SDK meets jMolecules: a new ZDLAnnotator.
